ROHM Semiconductor BM6437xS-VA 600V IGBT Intelligent Power Modules
ROHM Semiconductor BM6437xS-VA 600V IGBT Intelligent Power Modules (IPM) integrate gate drivers, bootstrap diodes, IGBTs, and flywheel diodes. The BM6437xS-VA has a collector current range of 15A to 35A. The ROHM BM6437xS-VA 600V IGBT IPMs features a low-side IGBT open emitter and built-in bootstrap diode.
Features
- 3-Phase DC/AC inverter
- 600V
- Low side IGBT open emitter
- Built-in bootstrap diode
- High side IGBT gate driver (HVIC)-
- SOI (Silicon On Insulator) process, drive circuit, high voltage level shifting, current limit for bootstrap diode, control supply Under-Voltage Locked Out (UVLO)
- Low Side IGBT Gate Driver (LVIC)-
- Drive circuit, Short Circuit Current Protection (SCP), control supply Under Voltage Locked Out (UVLO), Thermal Shutdown (TSD), Temperature Output by analog signal (VOT)
- Fault Signal (LVIC)
- Corresponding to SCP (low side IGBT), TSD, UVLO Fault
- Input interface 3.3V, 5V line
- UL Recognized: UL1557 File E468261
Applications
- AC100 to 240Vrms (DC voltage: less than 400V) class motor control
- Compressor motor control for air conditioner, washing machine, refrigerator
Videos

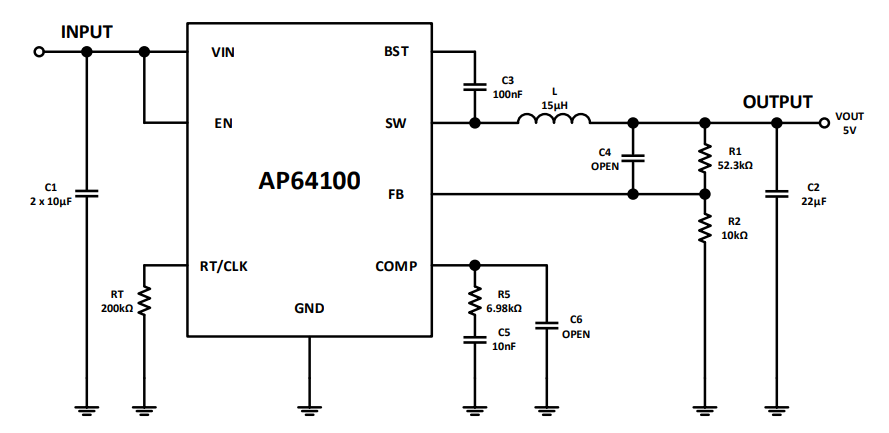

Typical Application Circuit
