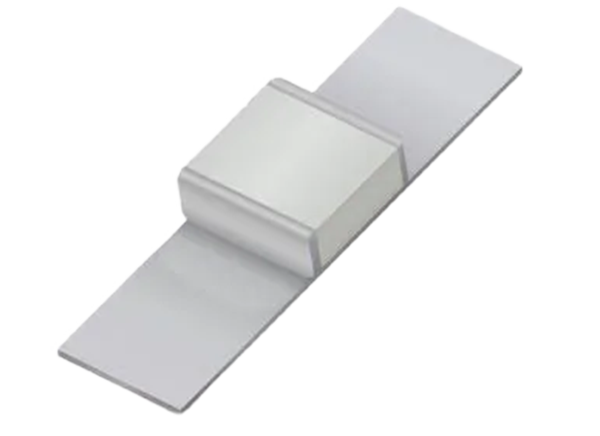

KYOCERA AVX 800E NPO Ceramic High RF Power Multilayer Capacitors are designed to provide superior heat transfer in demanding high RF power applications (from VHF through microwave frequencies) requiring consistent and reliable operation. The combination of highly conductive metal electrode systems, optimized case geometries, and proprietary dielectrics yields a low ESR. The 800E NPO Ceramic High RF Power Multilayer Capacitors offer superior thermal performance, operation in a -55°C to +125°C range with capacitance options from 3.3pF to 5100pF.
Case E Size, 0.380” x 0.380”
High RF power
High RF current/voltage
HF/RF power amplifiers
Medical (MRI coils)
3.3pF to 5100pF capacitance range
2kVDC to 7.2kVDC voltage range
±30PPM/°C temperature coefficient
-55°C to +125°C operating temperature range
Horizontal or vertical electrode orientations
KYOCERA AVX NPO High RF Power Multilayer Capacitors
designed for high RF power applications requiring consistent and reliable operation.
