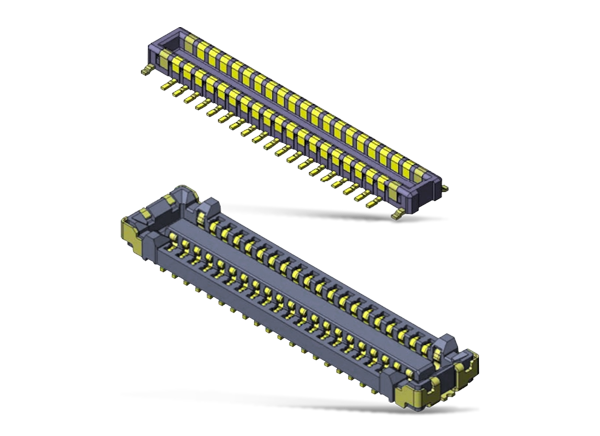

JAE Electronics WP25D Connectors are stacking type board-to-board (FPC) connectors featuring special hold-downs that can be used as power supply terminals. These low-profile connectors feature a 0.35mm pitch, 2 rows, and 0.7mm stacking height. The series equips high-current terminals that help minimize the number of terminals typically required in standard connectors. JAE Electronics WP25D Connectors are ideal for high-density mounting in smartphones and other slim and compact communication devices.
0.35mm pitch, 2 rows, 0.7mm stacking height
Two terminals for power supply compatible with 3A each
Two-point contact design resists twisting stress
Improved workability with a clear click feeling
Contact structure ensures high wear resistance and high contact reliability
Lead free (nickel barrier on contact prevents solder wicking)
70mΩ maximum (initial) contact resistance
0.3A per terminal AC, DC rated current per terminal (signal and power)
50V AC, DC rated voltage
-40°C to +85°C operating temperature range
JAE Electronics Board-to-Board Connectors
Low-profile, stacking-type connectors that offer high wear resistance and high contact reliability.
