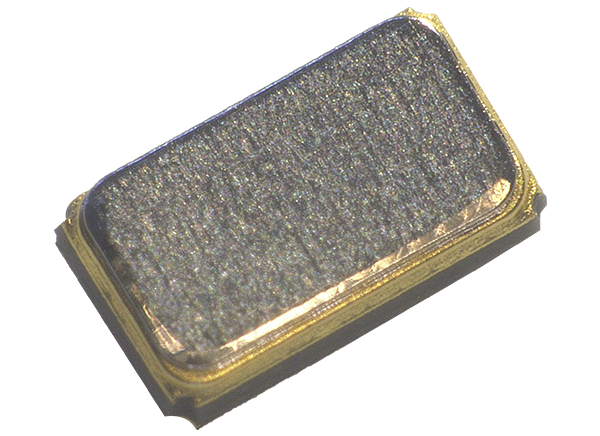

Epson Timing FC2012AN Crystals offers a nominal 32.768kHz frequency range and low ESR in a compact package of 2.05mm x 1.2mm. These crystals are equipped with a fully redesigned element based on Epson design and technology for tuning-fork crystal devices altered over many years. FC2012AN crystals support an operating temperature of up to +105°C and an ESR range from 35kΩ to 60kΩ. Epson Timing FC2012AN Crystals are ideal for applications that require low current consumption, including wearable products and wireless modules for sub-clocks.
Low-power MCUs for sub-clocks
Wireless modules for sub-clocks
50kΩ (-40°C to +85°C)
60kΩ (-40°C to +105°C)
32.768kHz nominal frequency range
±20 x 10-6 frequency tolerance
-40°C to +105°C operating temperature range
2.05mm x 1.2mm package size

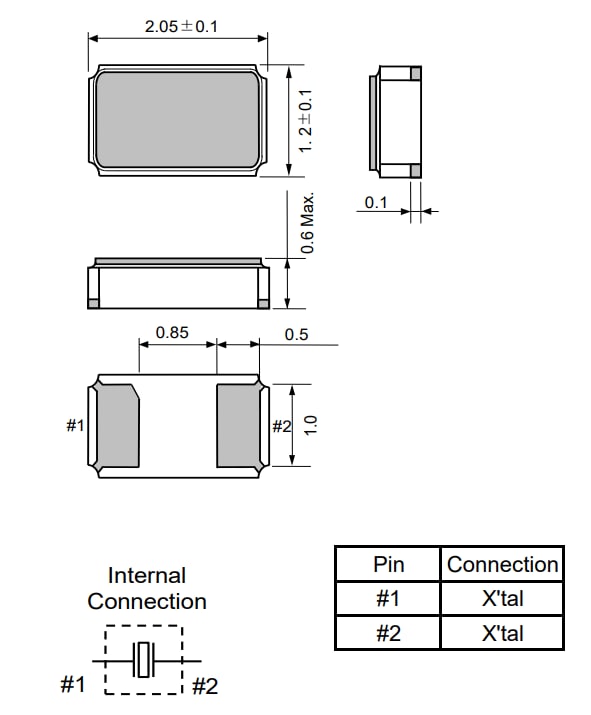

Outline Drawing & Terminal Assignment
