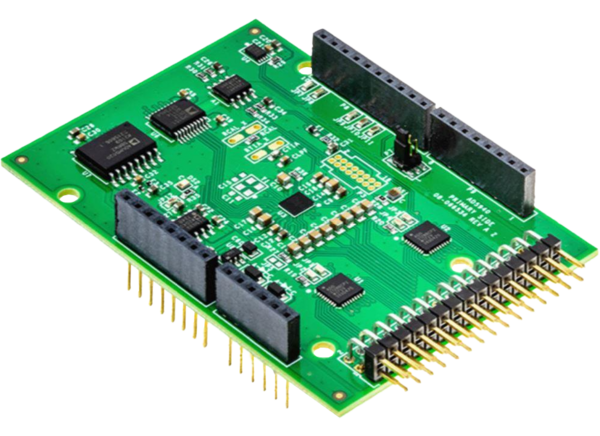

Analog Devices Inc. EVAL-CN0565-ARDZ EIT Measurement System
Analog Devices EVAL-CN0565-ARDZ Electrical Impedance Tomography (EIT) Measurement System is designed to characterize and compute surfaces' interior impedance. The system reconstructs a conductivity map using several repeating measurements from electrodes placed at different locations. The EVAL-CN0565-ARDZ supports impedance measurement setups with up to 24 electrodes. The design uses a pair of 8 × 12 analog crosspoint switches, which enables the excitation signal to be applied to one pair of electrodes at a time. Implementing crosspoint switches permits the circuit to maximize the impedance measurements, consequently improving the resolution of the constructed images.
The ADI EVAL-CN0565-ARDZ EIT Measurement System design also features full power and signal isolation to the host controller, which can be used as a reference for bioimpedance applications.
Features
- Up to 24x input electrodes, software selectable
- 2- or 4-wire electrode configuration supported
- Real and imaginary measurements up to 200kHz
- Open-source image recreation algorithms
- Isolated power and digital domains from the host
- Arduino form factor compatible
Design Resources
- Schematic
- Bill of Materials
- Gerber files
- Assembly drawing
- Allegro layout file
- LTspice simulation circuit
Download Design Files 6.37M
Associated Products
Analog Devices Inc. AD5940/AD5941 Analogue Front End
AFE devices that are capable of voltage, current, and impedance measurements with high precision.
Analog Devices Inc. Unbuffered Analog Crosspoint Switch ICs
Designed for routing high-speed signals including composite and component videos.
Analog Devices Inc. ADuM5020 & ADuM5028 isoPower DC-to-DC Converters
Low-emission, 3000Vrms, isolated DC-to-DC Converters for applications up to 500mW.
Analog Devices Inc. ADM7150 800mA Ultralow Noise RF Linear Regulator
Operates from 4.5V to 16V and provides up to 800mA of output current.
Analog Devices Inc. ADuM3151 SPIsolator™ Digital Isolators
3.75kV, dedicated isolators for SPI interfaces with 2/1 aux channel directionality.
Additional Resources

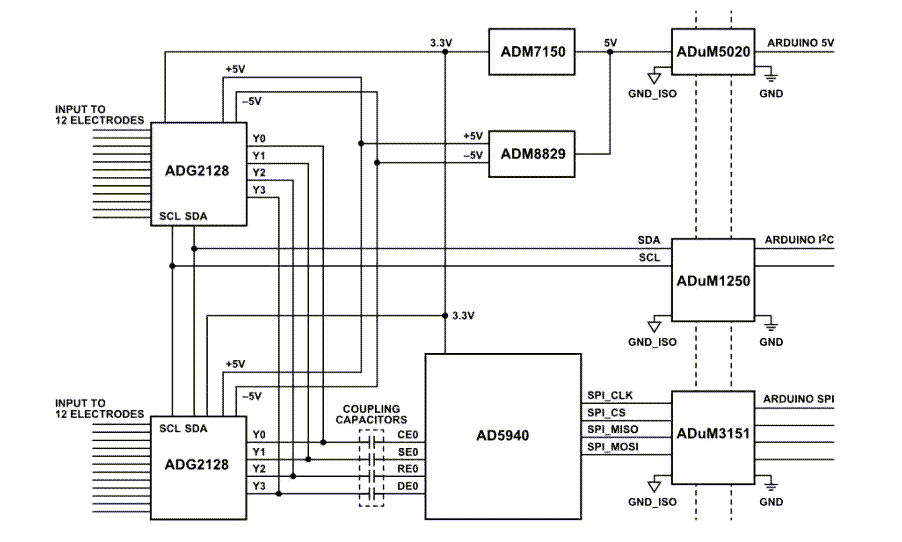

Simplified Block Diagram

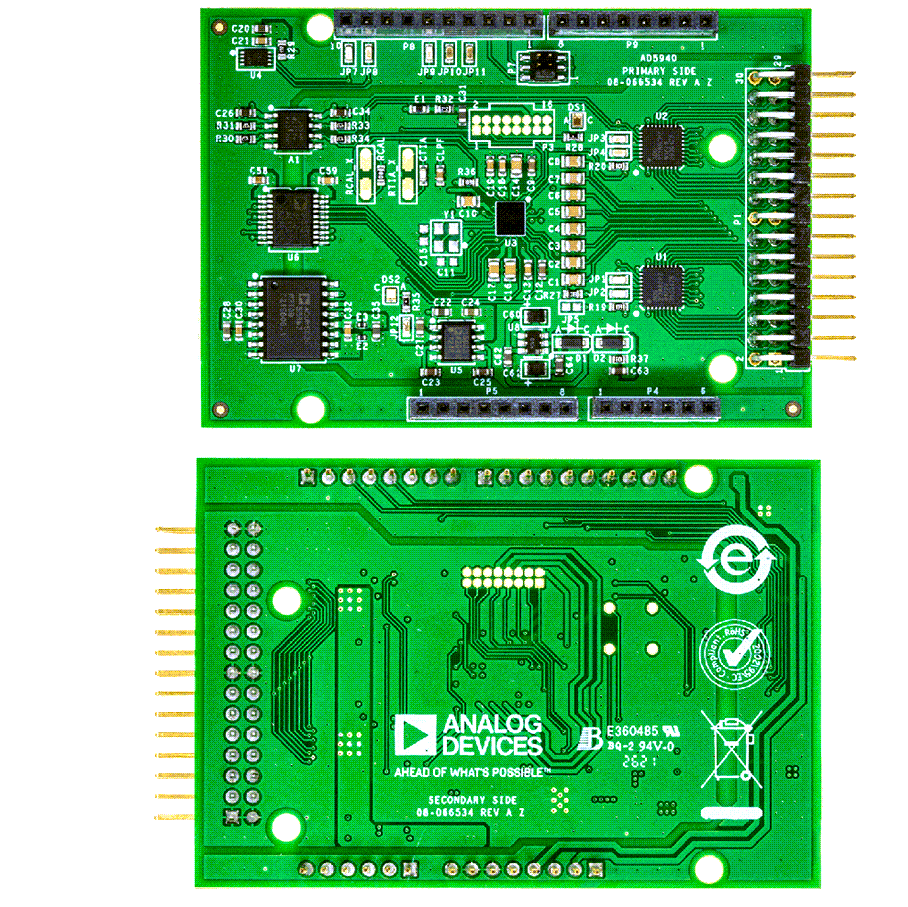

Layout
