NTP082N65S3HF

Name: onsemi NTP082N65S3HF
Brand: onsemi
SKU: 863-NTP082N65S3HF
Price: 42.9 DKK
Availability: InStock

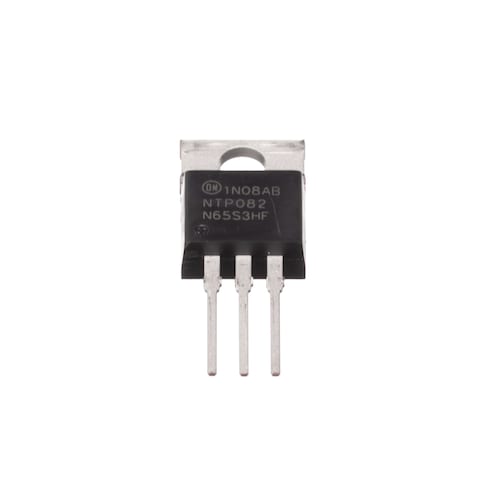

Images are for reference only
See Product Specifications

Mouser No:

863-NTP082N65S3HF

Mfr. No:

NTP082N65S3HF

Mfr.:

onsemi

Description:

MOSFETs MOSFET, Power, N-Channel, SUPERFET III, FRFET,650 V, 40 A, 82 mohm, TO-220

Datasheet:

NTP082N65S3HF Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about onsemi NTP082N65S3HF

In Stock: 7.752

Stock:: 7.752 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 17 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- kr.

Ext. Price:

-,-- kr.

Est. Tariff:

Pricing (DKK)

Qty.	Unit Price	Ext. Price
	42,90 kr.	42,90 kr.
	29,24 kr.	292,40 kr.
	27,01 kr.	2.701,00 kr.
	25,51 kr.	12.755,00 kr.

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	onsemi
Product Category:	MOSFETs
RoHS:
REACH - SVHC:
Technology:	Si
Mounting Style:	Through Hole
Package/Case:	TO-220-3
Transistor Polarity:	N-Channel
Number of Channels:	1 Channel
Vds - Drain-Source Breakdown Voltage:	650 V
Id - Continuous Drain Current:	40 A
Rds On - Drain-Source Resistance:	82 mOhms
Vgs - Gate-Source Voltage:	- 30 V, 30 V
Vgs th - Gate-Source Threshold Voltage:	5 V
Qg - Gate Charge:	81 nC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 150 C
Pd - Power Dissipation:	313 W
Channel Mode:	Enhancement
Packaging:	Tube
Brand:	onsemi
Product Type:	MOSFETs
Series:	NTP082N65S3HF
Factory Pack Quantity:	50
Subcategory:	Transistors

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

NTP082N65S3HF Datasheet

PCN

Material Composition Disclosure

TARIC:: 8541290000
CNHTS:: 8541290000
USHTS:: 8541290065
ECCN:: EAR99

SuperFET® III MOSFETs

onsemi SuperFET® III MOSFETs are high voltage Super-Junction (SJ) N-Channel MOSFETs designed to meet the high power density, system efficiency, and exceptional reliability requirements of telecom, server, electric vehicle (EV) charger and solar products. These devices combine best-in-class reliability, low EMI, excellent efficiency, and superior thermal performance to make them an ideal choice for high-performance applications. Complementing their performance characteristics, the broad range of package options offered by onsemi SuperFET III MOSFETs gives product designers high flexibility, particularly with size-constrained designs.
