CLM-105-02-L-D-TR

Name: Samtec CLM-105-02-L-D-TR
Brand: Samtec
SKU: 200-CLM10502LDTR
Price: 13.8 DKK
Availability: InStock

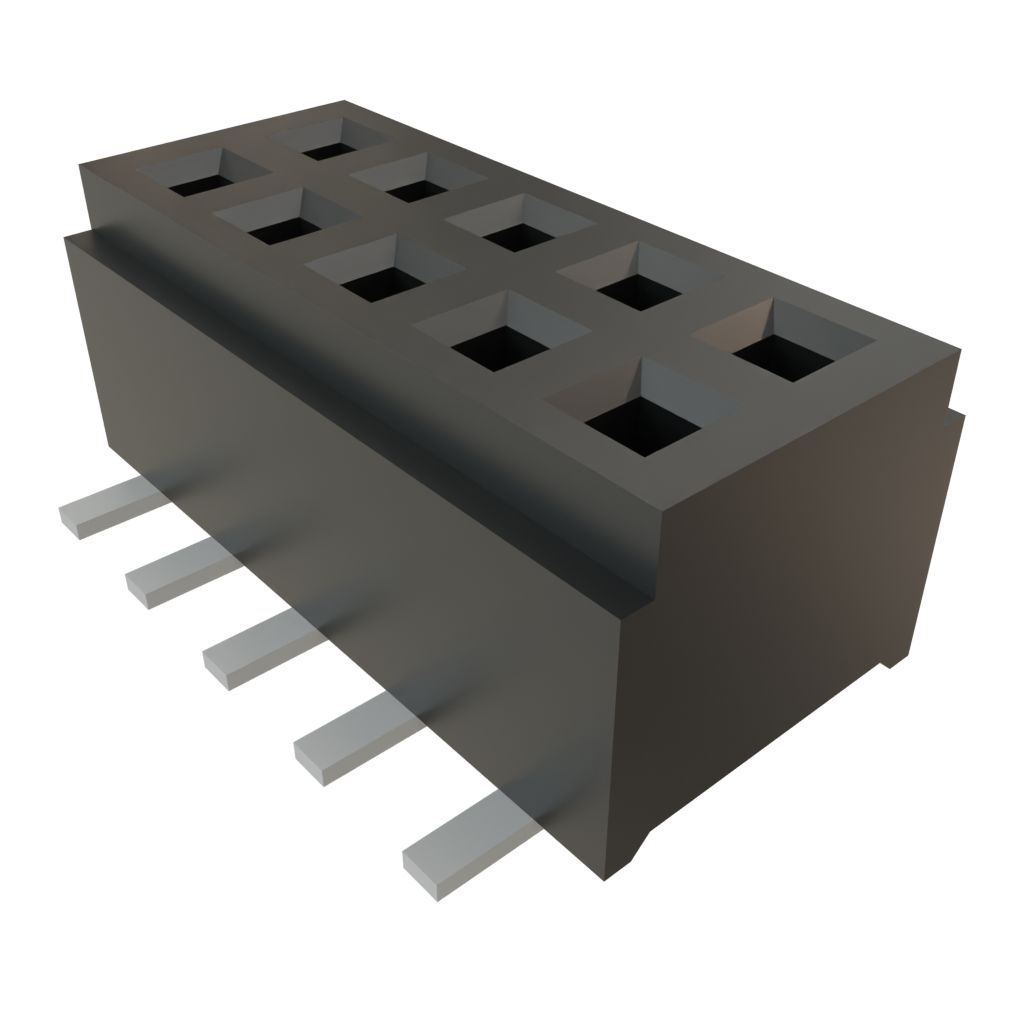

Images are for reference only
See Product Specifications

Mouser No:

200-CLM10502LDTR

Mfr. No:

CLM-105-02-L-D-TR

Mfr.:

Samtec

Description:

Headers & Wire Housings Low Profile Dual-Wipe Socket

Datasheet:

CLM-105-02-L-D-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec CLM-105-02-L-D-TR

In Stock: 2.484

Stock:: 2.484 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 2 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- kr.

Ext. Price:

-,-- kr.

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 1250)

Cut Tape

MouseReel™ (+47,00 kr.)

Pricing (DKK)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	13,80 kr.	13,80 kr.
	13,50 kr.	675,00 kr.
	11,71 kr.	1.171,00 kr.
	10,22 kr.	5.110,00 kr.
Full Reel (Order in multiples of 1250)
	9,33 kr.	11.662,50 kr.

† A MouseReel™ fee of 47,00 kr. will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

Alternative Packaging

Mfr. Part No.:

CLM-105-02-L-D

Packaging:

Tube

Availability:

In Stock

Price:

17,31 kr.

Min:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Sockets
Number of Positions:	10 Position
Pitch:	1 mm (0.039 in)
Number of Rows:	2 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Straight
Contact Plating:	Gold
Series:	CLM
Tradename:	Tiger Claw
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Samtec
Contact Material:	Phosphor Bronze
Current Rating:	3.1 A
Housing Material:	Liquid Crystal Polymer (LCP)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1250
Subcategory:	Headers & Wire Housings
Voltage Rating:	270 VAC
Unit Weight:	25,300 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Tiger Claw™ CLM, CLP & CLT Dual Wipe Socket Strips

Samtec Tiger Claw™ Dual Wipe Socket Strips are available in 1.00mm, 1.27mm, and 2.00mm pitches and feature a low-profile Tiger Claw contact system. These rugged sockets are insulated with black liquid crystal polymer and withstand 100 mating cycles. Samtec Tiger Claw socket strips have a -55°C to +125°C operating temperature and are RoHS compliant.
