504449-1007

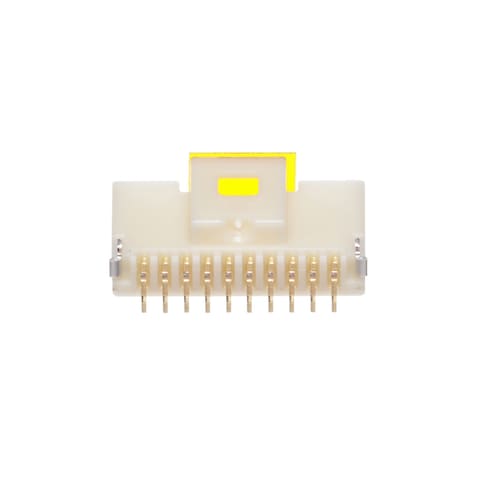

Name: Molex 504449-1007
Brand: Molex
SKU: 538-504449-1007
Price: 10 DKK
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-504449-1007

Mfr. No:

504449-1007

Mfr.:

Molex

Description:

Headers & Wire Housings 1.0 WB 1 ROW ST WAFER 10Ckt

Datasheet:

504449-1007 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 504449-1007

In Stock: 3.808

Stock:: 3.808 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 23 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- kr.

Ext. Price:

-,-- kr.

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 1100)

Cut Tape

MouseReel™ (+47,00 kr.)

Pricing (DKK)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	10,00 kr.	10,00 kr.
	8,73 kr.	87,30 kr.
	8,50 kr.	212,50 kr.
	8,43 kr.	421,50 kr.
	7,53 kr.	753,00 kr.
	7,31 kr.	1.827,50 kr.
	6,67 kr.	3.335,00 kr.
Full Reel (Order in multiples of 1100)
	5,62 kr.	6.182,00 kr.

† A MouseReel™ fee of 47,00 kr. will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	10 Position
Pitch:	1 mm (0.039 in)
Number of Rows:	1 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Series:	504449
Tradename:	Pico-Clasp
Application:	Wire-to-Board
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Molex
Contact Material:	Gold
Current Rating:	1 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Natural
Housing Material:	Polyamide (PA)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1100
Subcategory:	Headers & Wire Housings
Voltage Rating:	50 VAC/DC
Part # Aliases:	5044491007 05044491007
Unit Weight:	209 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Pico-Clasp™ Wire-to-Board Connectors

Molex Pico-Clasp™ Wire-to-Board Connectors are the smallest pitch (1.00mm) wire-to-board connectors with positive lock. Pico-Clasp 1.00mm pitch connectors come in single-row and dual-row configurations. The series offers friction and positive locks for various application needs. Pico-Clasp is designed for various connections in flat panel displays (FPD). This Molex connector system is also ideal for use in notebook PCs and other compact devices.

Miniaturization Solutions

Molex Miniaturization Solutions are ideal for a vast array of applications such as automotive, smart devices, mobile devices, and medical technology. These connectors provide space savings, high-density signals, and durability. The miniaturization of Molex connectors offers the benefit of fitting more components into smaller spaces, leading to increased functionality without the increased size or weight.

Signal Wire-to-Wire/Wire-to-Board Connectors

Molex Signal Wire-to-Wire/Wire-to-Board Connectors and Connector Systems feature a variety of wire-to-board signal connectors that offer design flexibility. Molex Signal WtW/WtB connectors and connector systems are ideal for personal computers and lighting, automotive, and industrial applications, depending on the model.
