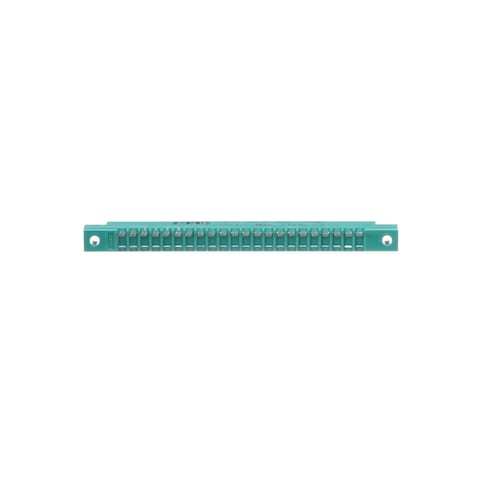

Name: EDAC 307-022-505-300
Brand: EDAC
SKU: 587-307-022-505-300
Price: 52.07 DKK
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

587-307-022-505-300

Mfr. No:

307-022-505-300

Mfr.:

EDAC

Description:

Standard Card Edge Connectors PRINTED CIRCUIT CONNECTOR

Datasheet:

307-022-505-300 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about EDAC 307-022-505-300

In Stock: 175

Stock:: 175 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- kr.

Ext. Price:

-,-- kr.

Est. Tariff:

Pricing (DKK)

Qty.	Unit Price	Ext. Price
	52,07 kr.	52,07 kr.
	46,92 kr.	469,20 kr.
	44,24 kr.	1.106,00 kr.
	43,04 kr.	2.152,00 kr.
	41,93 kr.	4.193,00 kr.
	37,37 kr.	9.342,50 kr.
	35,06 kr.	17.530,00 kr.
	32,08 kr.	32.080,00 kr.

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	EDAC
Product Category:	Standard Card Edge Connectors
RoHS:
Product:	Receptacles
Number of Positions:	22 Position
Pitch:	3.96 mm
Mounting Style:	PCB Mount
Contact Plating:	Gold
Series:	307
Brand:	EDAC
Contact Material:	Copper Alloy
Current Rating:	5 A
Housing Material:	Thermoplastic Polyester
Insulation Resistance:	5 GOhms
Maximum Operating Temperature:	+ 105 C
Minimum Operating Temperature:	- 40 C
Number of Rows:	3 Row
Product Type:	Standard Card Edge Connectors
Subcategory:	Card Edge Connectors
Termination Style:	Solder

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

307-022-505-300 Datasheet (PDF)

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

307 Series 3.96mm Pitch Card Edge Connectors

EDAC 307 Series Card Edge Connectors feature 3.96mm contact spacing by 5.08mm row spacing and accept a 1.57mm nominal thickness PCB. EDAC 307 Series Card Edge Connectors offer single- or dual-row configurations and various mounting options. These connectors accept between-contact and in-contact polarizing keys. The series offers a 5A continuous current rating and 1800V_AC rms withstand voltage at sea level between adjacent contacts. The 307 Series connectors operate over a -40°C to +105°C temperature range.

Card Edge Connectors

EDAC Card Edge Connectors offer a high number of design options and many opportunities to tailor interconnect requirements to a designer's needs. These EDAC connectors offer additional contact terminations, extra mounting options, multiple card guide solutions, high-temperature insulators, and extra row spaces. EDAC Card Edge Connectors are suitable for applications such as power supplies, storage devices, navigational equipment, and industrial control.
